DSX-40 Key Service Unit 4 x 8 x 2
- SKU:
- 1090001
- MPN:
- 1090001
- Condition:
- Refurbished
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
DSX-40 is a compact, wall-mountable, more economical member of the DSX family that offers many of the features and options of the larger DSX-80/160 in a smaller, self-contained cabinet. In its off-the-shelf basic configuration, DSX-40 supports 4 CO (outside) lines with Caller ID, 8 DSX digital keyset extensions, and 2 analog (single line) extensions with power failure.
Product Description
* CompactFlash card interface (for IntraMail, software loading, and database backup)
* Conference circuits, DTMF receivers and DTMF generators
* NAND Flash for storing the system database
* Battery for short term (14 day) backup of the internal Real Time Clock and station parameters
* Two audio inputs for Background Music and Music on Hold (1/8” mono minijacks)
* One audio output for External Paging (1/8” mono minijack)
* Ethernet and USB ports for local and remote PC Programming
* RS-232 serial port for Station Message Detail Recording
* 2 DSX Analog Door Box ports with associated relays
* Built-in V.32BIS 14.4K BPS modem for remote maintenance
* Conference circuits, DTMF receivers and DTMF generators
* NAND Flash for storing the system database
* Battery for short term (14 day) backup of the internal Real Time Clock and station parameters
* Two audio inputs for Background Music and Music on Hold (1/8” mono minijacks)
* One audio output for External Paging (1/8” mono minijack)
* Ethernet and USB ports for local and remote PC Programming
* RS-232 serial port for Station Message Detail Recording
* 2 DSX Analog Door Box ports with associated relays
* Built-in V.32BIS 14.4K BPS modem for remote maintenance
Related Products
DSX-40 System Kit 4 x 8 x 2 with (3) 22-Button Telephones
$500.00
The NEC DSX-40 offers many features of the larger NEC DSX-80 and is the more compact and economical member of the NEC DSX family. It offers a self-contained smaller cabinet. The DSX-40 has 4 Central...
Samsung Prostar 816 Plus Key Service Unit Equipped 4 Lines X 8 Stations
$250.00
The basic key service unit (KSU) comes equipped to operate four telephone lines and eight electronic keysets. Stations 7 and 8 have strapping options that will allow them to be used with single line...
DSX-80 Common Equipment Kit -8 x 16
$450.00
Contains: (1) 1090002 DSX-80 4-Slot Common Equipment Cabinet, (1) 1091008 DSX-80/160 Power Supply, (1) 1090010 DSX-80/160 Central Processor Card, (1) 1091009 DSX-80/160 8-Port CO Line Card, (1)...

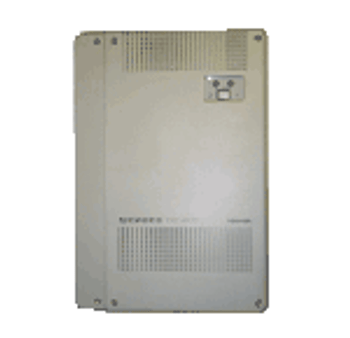

Toshiba DK40 Key Service Unit
