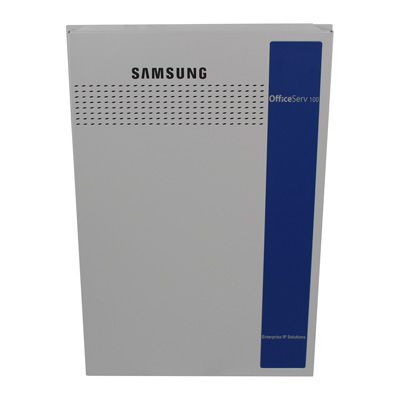

Samsung iDCS 100 KSU Key Service Unit

The OfficeServ 100 is a digital VoIP enabled telephone system designed for small businesses. It can operate with

the functionality of a square key system, PABX or a combination of both (hybrid).The OfficeServ 100 employes the

very latest DSP (Digital Signal Processor) digital technology. With integrated Media Gateway Cards (MGI), local IP

keysets, remote IP keysets and IP networking are easily and economically added as needed.

The OfficeServ 100 offers a variety of interface cards that allow connection to the public telephone network or to

private networks. These are generally referred to as trunk cards. Three types of telephones can be connected to

the system: 1) Keysets, 2) Standard Telephones and 3) IP Keysets. Proprietary digital phones called “keysets” con-

nect to digital line interface cards (DLI). Standard telephones generally called “single line sets” connect to single

line interface cards (SLI). In addition, DLI station ports are used to connect peripheral devices such as door phones

and add-on modules. Miscellaneous circuits are provided to allow such optional features as external paging,

music on hold, background music, common audible devices, alarms and emergency power failure telephones.

Samsung IP keysets are connected to the system via a TCP/IP network.

All keysets utilize a single PCB with surface-mounted components assuring the highest product quality and long

life. Samsung’s customary large, easy-to-read displays and LEDs in the button design make them much easier to

use. In many instances, sophisticated features are made simple through the use of friendly display prompts or

push-on/push-off feature keys
