SWITCH CONTROL PROCESSOR (SCP2)

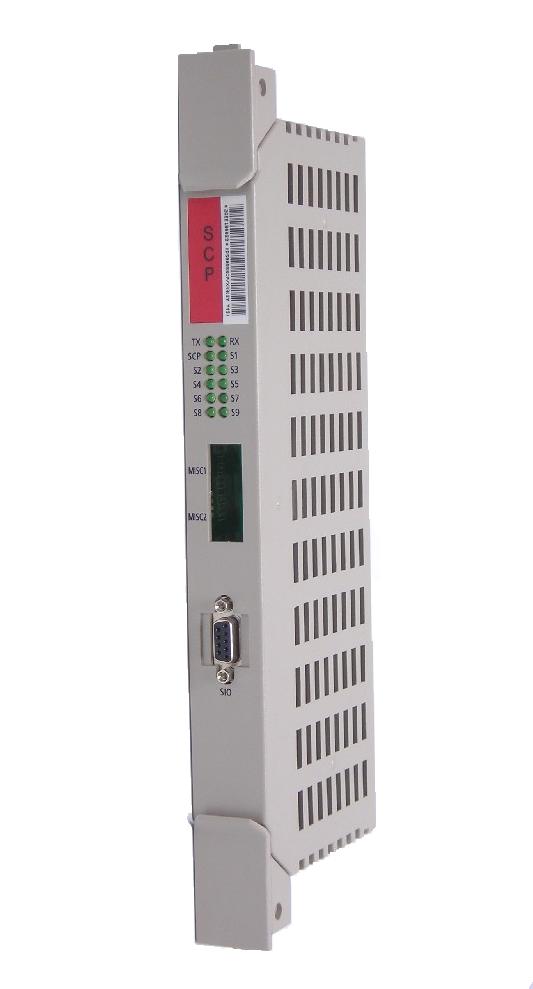

The Switch Control Processor (SCP2) is installed in slot 9 of the KSU and reduces the available universal card slots to eight. The SCP2 card is required when the system is to be expanded beyond a single cabinet or L version software is required. The SCP2 card has positions for three optional daughter boards. The first daughter board position (SCP2-D1) can support one of three types of daughter board, a Multi-Frequency Module (MFM), a Switch/Conference Module (SCM) or an R2/CID Module (RCM2). The second daughter board position (SCP2-D2) can support the MFM, the SCM, the RCM2 or the MISC. The third daughter board position (SCP2-D3) can support one of the three types of daughter board, a Multi-Frequency Module (MFM), a Switch/Conference Module (SCM) or an R2/CID Module (RCM2).

Note: Only one of any type of daughter board may be installed on any processor card.
