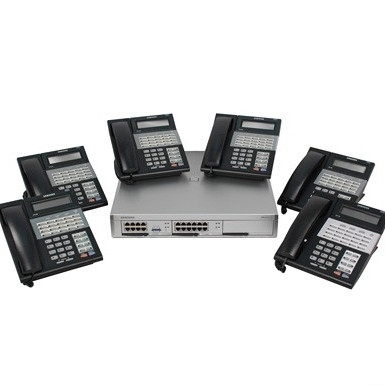

Samsung Officeserv 7100 Small Business System Package, Equipped for 4 Lines with Caller ID, 8 Digital Station Ports, 4 Port Voice Mail with 6 ea. iDCS 28 Button Phones

NOTE: PACKAGE INCLUDES 1ea OS7100 System Cabinet, 1ea MP10A Processor Card, 1ea OS7100SD10A Card, 1ea UNI Card, 1ea 4TRM Card, 2ea 4DLM Card, 6 ea iDCS 28 Button Keysets.

SPECIAL NOTE: WHEN USING IP TELEPHONY APPLICATIONS (IP KEYSETS, WAP, SPNET) WITH THIS PACKAGE MGI CHANNELS MUST BE LICENSED!!!!!!!!!

GENERAL DESCRIPTION

The OfficeServ 7100 is an “office in a box” solution that converges LAN switching functions (LAN/WAN) with the 99.999% reliability of TDM voice processing. The OfficeServ 7100 IP platform supports industry standard Voiceover Internet Protocol (VoIP) as well as the more robust Telephony over IP (ToIP). The integrated Layer 2 PoE switch module adds powerful access capabilities providing data network solution for your enterprise. Combine these technologies with Samsung’s Wireless LAN IP Handsets, embedded Voice Mail Application, a suite of OfficeServ Computer Telephony applications, and much more, all in one powerful platform….A COMPLETE VOICE SOLUTION FOR THE ENTERPRISE.

The OfficeServ 7100 can be rack-mounted in a standard 19” data rack wall-mounted or set on a desktop. Its compact cabinet design, RJ-45 connectors, and CAT 5 cabling allows it to easily integrate into any data center environment along with existing data equipment. Expanding the OfficeServ 7100 system is both economical and easy. With a single cabinet providing 2 universal card slots, its low and high density card design allows greater flexibility when configuring a system for the right combination of lines and stations. A removable software pack MMC+makes it convenient to upgrade to future feature packages.

The OfficeServ 7100 offers a variety of interface cards that allow connection to the public telephone network or to private networks using either analog or digital circuits. Proprietary digital phones called “keysets”connect to Digital Line Interface cards (DLM). In addition to these conventional digital keyset, Samsung offers a complete line-up of IP terminals.These IP terminals use the latest Voice over Internet Protocol (VoIP) technology and can be deployed over LANs or WANs. They are ideal for distant (remote) locations providing all the benefits of the OfficeServ 7100 to home workers and road warriors. Standard telephones generally called “single line sets” connect to single line interface cards (SLM). In addition, DLI station ports are used to connect peripheral devices such as door phones and add-on modules. Miscellaneous circuits are built-in to allow such optional features as external paging, music on hold, background music, and common audible devices.

All digital and IP telephones  utilize a single PCB with surface-mounted components assuring the highest product quality and long life. Samsung’s customary large, easy-to-read displays and LEDs in the button design make them much easier to use. In many instances, sophisticated features are made simple through the use of friendly display prompts or push-on/push-off feature keys. The OfficeServ 7100 includes all of this, PLUS the same, robust, time proven, market tested feature package offered on the OfficeServ 7200 and  OfficeServ 7400 products.

BENEFITS

•       End to End Samsung components, Samsung Support and Samsung Training. The Ultimate in single source

Shopping and maintenance!

•      The OfficeServ 7100 can also integrate into an existing office data network providing many solutions such as

isolating voice traffic onto the separate data network.

•       The OfficeServ 7100 networks (via SPNET over IP or Qsig over PRI) to other 7100’s or any OfficeServ 7400,

7200, 500 or 100 systems.
