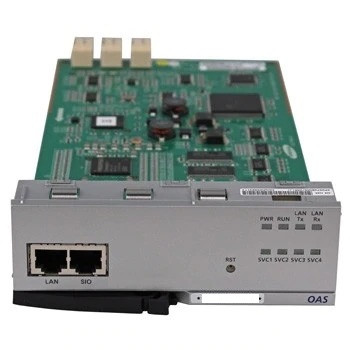

Samsung OfficeServ OAS Card
- SKU:
- KPOS74BOAS/XAR
- MPN:
- KPOS74BOAS/XAR
- Condition:
- Refurbished
- Shipping:
- Calculated at Checkout
Description
OAS (OPTIONAL APPLICATION SERVICES)
The OAS card provides 64 digital signal processors (DSP’s) that can be configured as MGI channels, MOBEX DTMF receivers used by the Executive MOBEX feature, or a mix of the two. MGI channels are enabled in 4 port increments, and each increment will decrease the available MOBEX DTMF receivers by 16. In addition to these configurable DSP’s the OAS card provides 32 DSP’s dedicated to providing 64 Media Proxy Service (MPS) channels. The OAS card can be installed in any universal slot in any cabinet. If installed in an expansion cabinet, however, the number of configurable DSP’s is reduced to 32 due to the timeslot restrictions in expansion cabinets. A maximum of 4 OAS cards can be installed, allowing up to 256 Executive MOBEX users, 64 MGI channels, or a mixture of each, and up to 256 MPS channels. Every call that uses an MPS channel will actually use two (2) MPS channels.
Note: Executive MOBEX is a licensed feature.
